Edision HDMI MODULATOR mini

€139,95 EUR

Flattering fit

Enjoy the flattering fit and butterfly soft feeling

Flattering fit

Enjoy the flattering fit and butterfly soft feeling

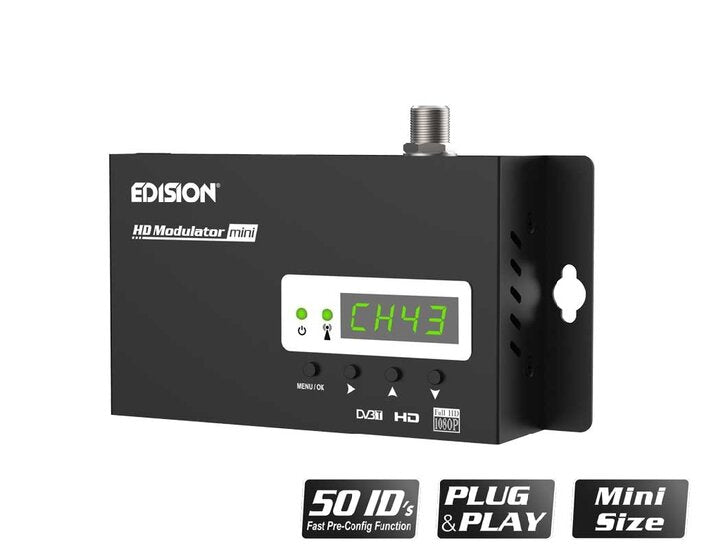

Digitale, 1 kanaals FULL HIGH DEFINITION-modulator in miniformaat. Met invoer van elke HDMI-bron (terrestrische en satellietdecoders, camera's, dvd, DVR, enz.), moduleert en produceert het uitvoer tot FULL HIGH DEFINITION 1080p MPEG4, terrestrisch digitaal DVB-T-signaal, in VHF / UHF-banden. Eenvoudige en snelle configuratie met de ID Pre-Config-functie en ruimtebesparend in de installatie met zeer compacte afmetingen voor een eenvoudige installatie, zelfs in minimale ruimteomstandigheden.

Technical features:

- Digital single-channel HDMI Modulator to DVB-T/MPEG4
- INPUT signal: HDMI
- OUTPUT signal: Digital Terrestrial DVB-T signal, MPEG4
- High Video Resolution up to 1080p@30FPS
- Aspect Ratio 16:9 wide screen, 4:3 letter box, 4:3 pan scan
- Frequency Range VHF (CH. 5-12) & UHF (CH. 21-69)
- RF Output Level: Factory default 90 dbμV, with adjustable gain up to +6dbμV or attenuation up to -14dbμV
- MER: >35dB at Maximum RF output level
- Symbol Rate Up to 31.668 MBPS
- Bandwidth 7MHZ, 8MHZ
- Video Encoder: MPEG1, MPEG2 MP@HL , MPEG4 SP@L3 to ASP@L5, MPEG4 AVC HP @level4.1, MP@level4.1
- Audio Encoder: MPEGI L1/2, MPEGII LII, AAC LC, HE-AAC v1/v2 (2-CH)
- Processor System: CPU 200MHz 32Bits RISC
- Memory DDRII 16bit 512Mbits (Embedded) & NOR Flash 32Mbit
- Input HDMI v1.4a
- USB Type USB 2.0 HOST
- Fast Pre-Config Function / 50 IDs Selectable
- Backup Config File by USB
- Software Upgrade via USB

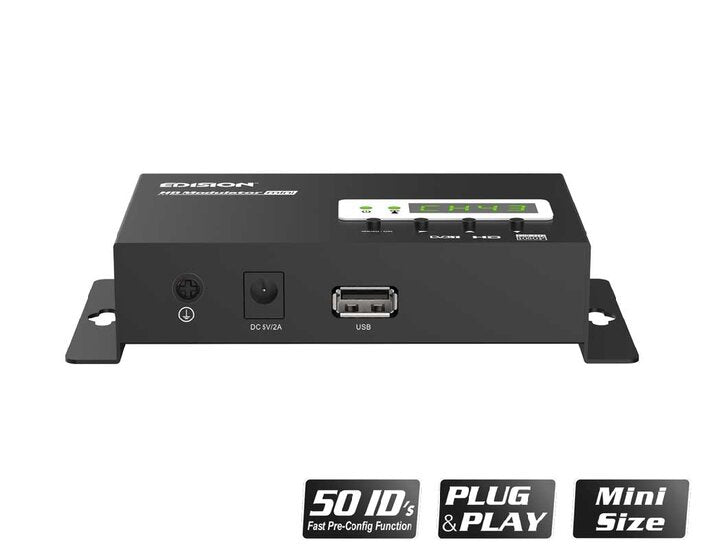

- Ports: HDMI IN, RF OUT, USB, DC 5V, GROUND
- 4-digit LED display
- 4-display buttons

Package includes:
- HDMI Modulator mini
- Power Supply Unit 5V/2.0A
- Mounting screws
- User Manual EN/DE/GR/ES/IT/FR

General:
- Power Supply: 100 - 240 AC 50/60Hz
- Input Voltage: DC 5V 2.0A
- Power Consumption: max. 8.0W
- Operating Temperature: 0°C ... +50°C
- Storage Temperature: -20°C ... +70°C
- Humidity Range: 10% ... 85% RH, non-condensing
- Dimensions: 132x84x31 mm (mini size)
- Weight: 0,35 kg
- Color: black
- Warranty: 2 years
