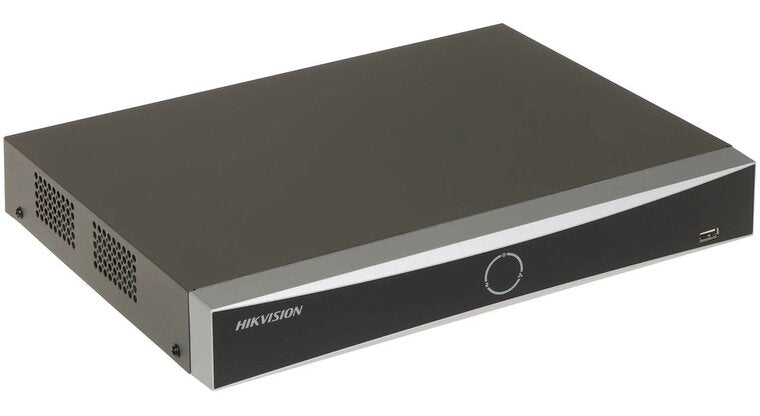

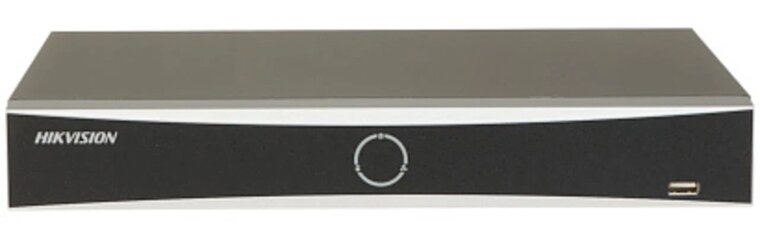

Hikvision DS-7604NXI-K1/4P - 4x max 12MP AcuSense PoE

Hikvision NVR DS-7604NXI-K1/4P 4 kanaals POE IP-recorder met 4xPoE ports, 4K resolutie

Video And Audio

IP Video Input: 4-ch
HDMI Output: HDMI:,4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,VGA: ,1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,
VGA Output: HDMI,VGA
Incoming Bandwidth: 40 Mbps ,80 Mbps
Audio Output: 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1kΩ)

Decoding

Decoding Format: H.265+,H.265,H.264+,H.264,MPEG4
Decoding Capability: 1-ch @ 8 MP / 4-ch @ 1080p
Synchronous Playback: 4-ch
Recording Resolution:
8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Network

Network Protocol: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Network Interface: 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

PoE

Interface: 4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power: ≤ 50 W
Standard: IEEE 802.3 af/at

RAID

RAID Type: No

Auxiliary Interface

SATA: 1
Capacity: Up to 6TB capacity for each disk
USB Interface: 2 × USB 2.0

General

Power Supply: 48 VDC,≤ 65 W
Consumption: ≤ 10 W (without enabling PoE)
Working Temperature: -10 to +55° C (14 to 131° F)
Working Humidity: 10 to 90 %
Chassis: 1U
Dimension (W × D × H): 315 × 240 × 48 mm (12.4″ × 9.4″ × 1.9″)
≤ 1 kg (2.2 lb)

	__ __
Description	Description - __
Rating	Rating - __
Vendor	Vendor - __
Color	Color - __
	Translation missing: nl.product_comparison.view_details

Combo Up Savings Up To $1060+

The more you add, the more you'll save!

Hikvision DS-7604NXI-K1/4P - 4x max 12MP AcuSense PoE

€229,00 EUR

Flattering fit

Enjoy the flattering fit and butterfly soft feeling

Flattering fit

Enjoy the flattering fit and butterfly soft feeling

Netwerk Video Recorder 4-kanalen, incl. PoE switch

De Hikvision NVR DS-7604NXI-K1/4P 4 kanaals POE Recorder is voorzien van 4 x PoE. Nog nooit was IP-CCTV zo eenvoudig, de camera’s kunnen direct op de recorder aangesloten zonder tussenkomst van extra netwerk apparatuur worden, echter is het ook mogelijk om via het lokale IP-adres een camera aan het cameramanagement toe te voegen. Bij rechtstreekse aansluiting op de recorder worden de camera’s automatisch in het menu opgenomen en van een IP-adres voorzien.

Iedere PoE-uitgang kan over maximaal 250m signaal en voeding versturen! Het gebruik van de juiste, vol koperen UTP kabels, is hierbij essentieel.

Deze 4K NVR maakt gebruik van H.265+ codering om de bandbreedte en het opslaggebruik drastisch te verminderen.

Hikvision NVR DS-7604NXI-K1/4P 4 kanaals POE IP-recorder met 4xPoE ports, 4K resolutie

Video And Audio

IP Video Input: 4-ch
HDMI Output: HDMI:,4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,VGA: ,1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,
VGA Output: HDMI,VGA
Incoming Bandwidth: 40 Mbps ,80 Mbps
Audio Output: 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1kΩ)

Decoding

Decoding Format: H.265+,H.265,H.264+,H.264,MPEG4
Decoding Capability: 1-ch @ 8 MP / 4-ch @ 1080p
Synchronous Playback: 4-ch
Recording Resolution:
8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Network

Network Protocol: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Network Interface: 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

PoE

Interface: 4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power: ≤ 50 W
Standard: IEEE 802.3 af/at

RAID

RAID Type: No

Auxiliary Interface

SATA: 1
Capacity: Up to 6TB capacity for each disk
USB Interface: 2 × USB 2.0

General

Power Supply: 48 VDC,≤ 65 W
Consumption: ≤ 10 W (without enabling PoE)
Working Temperature: -10 to +55° C (14 to 131° F)
Working Humidity: 10 to 90 %
Chassis: 1U
Dimension (W × D × H): 315 × 240 × 48 mm (12.4″ × 9.4″ × 1.9″)
≤ 1 kg (2.2 lb)
